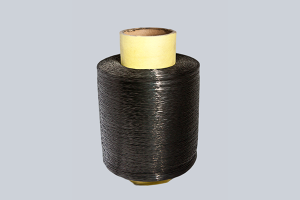

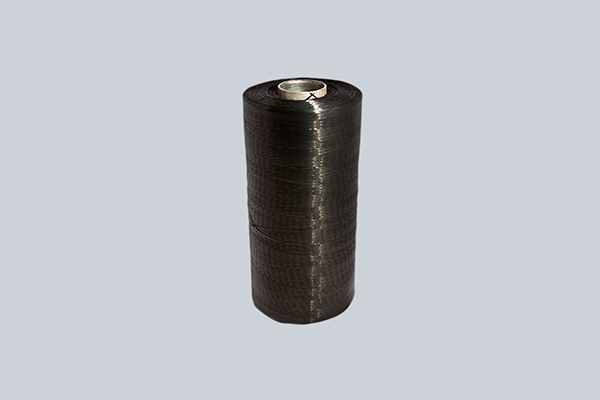

Carbon Black Conductive Yarn (Type C)
Carbon Black Conductive Yarn is used to ground the static electricity on the surface of the type C FIBC. Conductive yarns form a special conductive network with other yarns in woven fabrics.
| PRODUCT | Thickness | Width | Resistivity | Tensile Strenght | Elongation |
| T01 1550 | 1550 dtex | 1,2mm | 1.0 ohm/m | 1,4 gr/dtex | min %50 |
| T02 1600 | 1600 dtex | 1,2 mm | 1.0 ohm/m | 1,4 gr/dtex | min %50 |
| T03 CD 1800 | 1800 dtex | 1,2 mm | 1.0 ohm/m | 1,4 gr/dtex | min %50 |
| T04 CD 2000 | 2000 dtex | 1,2mm | 1.0 ohm/m | 1,4 gr/dtex | min %50 |
According to the type of weaving machine can hold on two different bobbin.
| For flat looms | |
| Inner diameter | 90 mm |
| Tube length | 280 mm |
| Winding width | 250 mm |
| Winding diameter | 160 – 280 mm |
| For circular looms | |
| Inner diameter | 35 mm |
| Tube length | 225 mm |
| Winding width | 200 mm |
| Winding diameter | 90 – 160 mm |
